Delmer - OCS-SP Crane Scales Manufacturer Company

eweighing

OCS-SL

Features:
  • Multi-weighing units:
    Kg, lb, N are selectable, generally kg are default unit.
  • Multi-function operation:Tare;Zero;Auto zero tracking;Total;Hold; Overload warning and record, operate through remote controller,etc functions.
  • User-friendly design:Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.
heavy duty crane scale
Main Technical Data
Standard According to OIML class III
Display 30mm (1.2’’) 5digits LCD/LED
Zero Range 4% F.S.
Tare Range 100% F.S.
Stable Time ≤5 seconds
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 400% F.S.
Battery Life ≥50 hours
Battery Type Fully sealed Lead-Acid battery, 6V/4.5Ah
Adapter DC9V/1000mA
Operating Temp. - 10℃ ~ + 40℃
Operating Humidity ≤85% RH under 20℃
Remote Controller Distance Min. 15m
Battery of Remote Controller 7# battery, 1.5Vⅹ2
Specifications
MODEL Max. capacity(kg) Min. weigh(kg) Division(kg) Total counts (n)
OCS-SL-2 2000 20 1 2000
OCS-SL-3 3000 20 1 2000
OCS-SL-5 5000 40 2 3000
OCS-SL-10 10000 100 5 2500
OCS-SL-15 15000 100 5 3000
OCS-SL-20 20000 200 10 2000

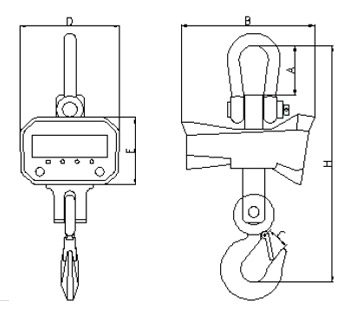

Appearance Illustration
MODEL A(mm) B(mm) C(mm) D(mm) E(mm) H(mm) N.W
OCS-SL-2 95 260 35 195 130 430 10.5kg
OCS-SL-3 95 260 45 195 130 460 11.5kg
OCS-SL-5 125 325 55 235 158 525 16.5kg
OCS-SL-10 140 325 65 235 158 660 27.5kg
OCS-SL-15 175 345 70 235 160 805 49kg
OCS-SL-20 175 345 85 235 160 870 56kg
digital crane scale
